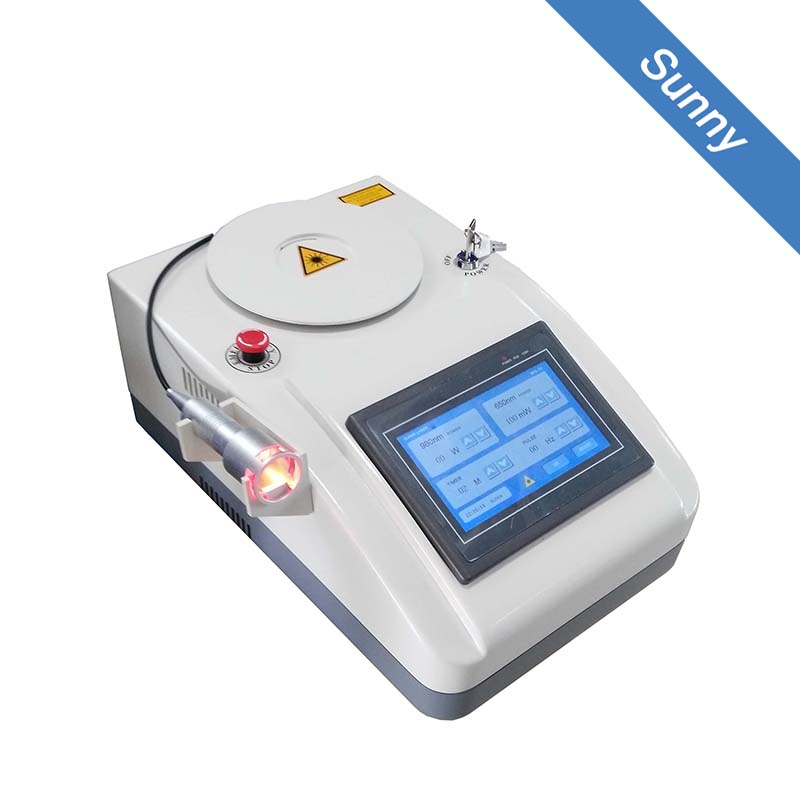

MDL15 Diode cold laser AIO devices
Host
Price Consulting
The shell is made of plastic case with LCD control panel, computer controller, laser power supply, low voltage DC power supply and two lasers.
The two lasers: wavelength 980nm maximum power 15W diode laser, and wavelength 650nm maximum power 500mW diode laser.
Optical cable
An optical fiber cable is passed through a coupler to transmit two kinds of laser to the handles. The optical cable from the upper treatment instrument by optical cable center leads, and wrapped around cable tray. The fiber winding in rotate counterclockwise direction, pay attention to the clockwise direction will break fiber.
laser handles
Laser handles can be fastened by hand or a bracket. The laser beam at the output of the handle of the diameter of 40mm, far away the area can be expanded beam.
LCD Screen
The output power of two kinds of laser can be adjusted, and the laser pulse output frequency and laser irradiation time can be selected. And the clock shows the current time.Related Products
Product IntroductionWorking PrincipleTechnical ParametersVideoDownLoad
MDL15 medical diode laser instrument outputs high power and far IR with strong penetrability. High laser energy also can penetrate into personal organization deeply, it is good for treating joint parts and other with a much good effective, some disease such as ease pain, and diminish inflammation , it can promote organization rehabilitate, adjust inside body balance, promote wound cicatrize.
Irradiation principle
MDL15Two Wave Laser Instruments have two wavelengths of output laser, 980nm and 650nm, those two wavelengths all can be simultaneously irradiated body tissue, promoting blood circulation, anti-inflammatory, analgesic effect.
Because 650nm wavelength is the absorption wavelength of the red blood cells, after the absorption, red blood cells can enhance the oxygen carrying capacity. The power of this type treatment instrument is 500mW, so the irradiation area is larger, deeper, better effect than the general LLT. And 980nm wavelength can penetrate the skin of deep tissue hyperthermia to wound treatment, so combining the two wavelength laser compared with the single wave length treatment instrument for the treatment effect is greatly improved.
| Output power; 980nm | 15W, 650nm:500mW |
| Time control | 1-60 minutes |
| Pulse control | 1-99Hz |
| Rated input power | <300VA |
| Power supply voltage | AC110V or AC220V |
| Packaging size | 440(D)*290(W)*160(H) mm |
| Weight | 5kg |
| Normal working conditions: | A) Ambient temperature: 10 DEG C - 25 C |
| B) Relative humidity: 30% - 70%; | |
| C) Atmospheric pressure: 70kPa - 106 kPa; | |
| D) Power supply: AC 110-230V, 50-60Hz |
