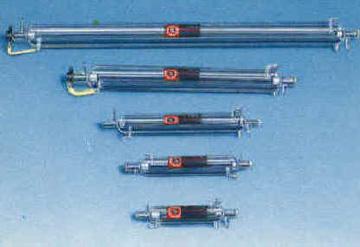

CO2 Laser Tube

antrum length	work voltage	current	output power
450mm	10kv	14mA	15
600mm	12kv	20mA	20w
800mm	13kv	22mA	30w
1000mm	15kv	24mA	40w
1200mm	16kv	28mA	60w
1600mm	17kv	30mA	80w

Laser Power Supply

Type	KDC-40	KDC-60
suited laser tube	﹤1000mm	﹤1200mm
laser power	40W	60W
startup voltage	﹥22KV	﹥24KV
working voltage	15KV	16KV
output current	22mA	24mA
dimension (mm)	150×110×70	180×170×95

Optical Lens

apellation	instruction	use
CO2 focalize mirror	Ze Ø20、F=100 Ø12、F=70	CO2laser surgical instrument light articulated arm output mirror
CO2 focalize mirror	ZnSe Ø20、Ø12 F=100、F=54
CO2 separate beam mirror	Ze Ø20	CO2 red laser direction
CO2 holophote	gold theca Ø20	CO2 laser treatment fold-refraction
YAG focal mirror	Ø20，F=20	YAG laser treatment coupling lens
YAG output mirror	Ø20 permeation rate 10-20%	YAG laser treatment resonance antrum
YAG holophote	Ø20 emissivity>99.8%	YAG laser treatment resonance

Articulated Arms

6joint hammer balance	6joint spring balance	7joint spring balance	7joint hammer balance

Optical Fibre
Quartz light fiber introduction
a. YAG laser adopts optical fiber: core has three modes. such as 0.4mm,0.5mm,0.6mm.the laser import belongs to international standard interface of SMA905 .whose standard length is 3mm. b. HeNe laser and 2mw diode which are made of import lotus root head and jacket tube, output head. whose length is 1.5m.
