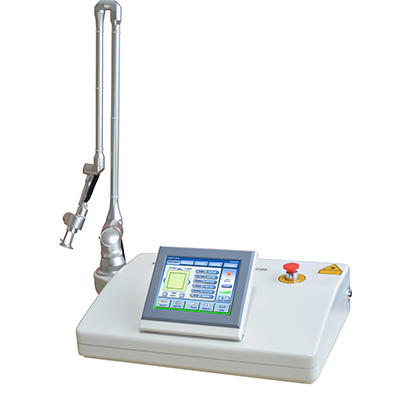

CL20F CO2 fractional laser surgical system
Scanning laser is controlled by the computer, laser beam on the skin that hit points of light are arranged in all kinds of graphics
In fact laser beam not be divided into many points, So, Each of the points of light in diameter is 0.2-0.3 mm, this is the current technology can make the smallest points of light.As each time 5 milliseconds, glowing stay type 60 points that need to 300 milliseconds
Price ConsultingRelated Products
Product IntroductionWorking PrincipleTechnical ParametersVideoDownLoad
SCAN FRACTIONAL LASER APPLICATIONS:
Acne scars, nevi, tattoo, dark spots, warts, removal
Wrinkles reduction or removal (face, forehead, around lips, neck)
Hemangioma, lipoma cutting
Lleukoplakia vulvae treatment
Aesthetics Surgery: skin rejuvenation, eyelift, facelift, etc
Scanning fractional laser is controlled by the computer, laser beam on the skin that hit points of light are arranged in all kinds of graphics,In fact laser beam not be divided into many points, So, Each of the points of light in diameter is 0.1-0.3 mm, this is the current technology can make the smallest points of light.
As each time 5 milliseconds, glowing stay type 60 points that need to 300 milliseconds,
Because of the laser stay time is short, the main role in the epidermis,
But, it can arrange more closely,So, scanning laser is available for skin peeling surgery and used for change skin beauty
LASER SYSTEM SPECIFICATION
|
Wavelengths |
10.6microns |
|
Mode Structure |
TEM00 |
|
Focus size |
0.2 mm |
|
Power to tissue |
15W ( glass tube) / 30W(RF metal tube) |
|
Laser operation modes |
Ultra Pulse ,Single, Repeat Pulse & Continuous Pulse. |
|
Aiming beam |
Diode laser 650nm 3mW |
|
Beam delivery system |
7-joint spring-balanced articulated arm |
|
Working radius |
110 cm |
SCAN FRACTIONAL SPECIFICATION
|
Scanner Graphics |
Square or rectangle, Polygon, round ，triangle |
|
Fractional scan mode |
Interleav Seriation Scatter |
|
Treatment size |
0-20mm2 (adjustable) |
|
Dwell time |
0.1-10 ms |
|
Point distance |
0.1--2.6 mm |
|
overlap |
1--2000 |
WHOLE MACHINE SPECIFICATION
|

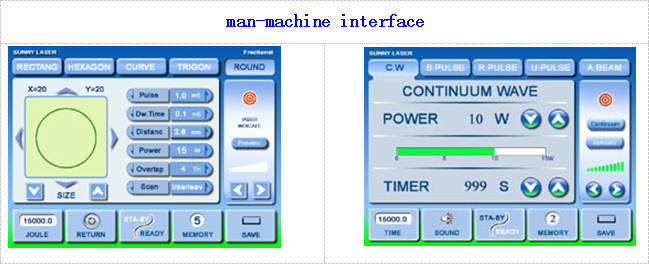

Control system |
8 inch touch screen color, footswitch |
|
menus |
0-9 |
|
Cooling system |
Water closed-cycle/ Air cooling |
|
Electrical |
230VAC/50Hz or 110VAC/60Hz |
|
Package dimensions |
790x550x310mm3 |
|
Gross weight |
21kg |
|
Net weight |
18kg |
|
Warranty |
1year |
