ENT Micromanipulator in laser CO2 System
You are here : Home > Products > Medical Equipment > Microsurgery Laser S... > ENT Micromanipulator...-
-
ENT Micromanipulator in laser CO2 System
The use of profiling laser surgery system the company patented technology, through the intelligent control system of laser micro, laser beam can be controlled according to the required scanning, the laser beam in the view of the microscope in automatic scanning cutting, burning the target tissue, to achieve the purpose of copying laser fine surgery. It overcomes the inconvenience and difficulty of manual adjustment, improves the precision of laser micro operation, and expands the range of laser application.
Price Consulting
Product IntroductionWorking PrincipleTechnical ParametersVideoDownLoad
Micromanipulator
Laser microsurgery functions :
Laser can scan automatically according to setrings graphics (Gasification, burning, cutting) ;Five kinds of graphics operation interface: Rectangle, circle or ring, curves, points, round or oval ;Graphics adjustment functions ;Graphic rotation function:0-360° adjustable .

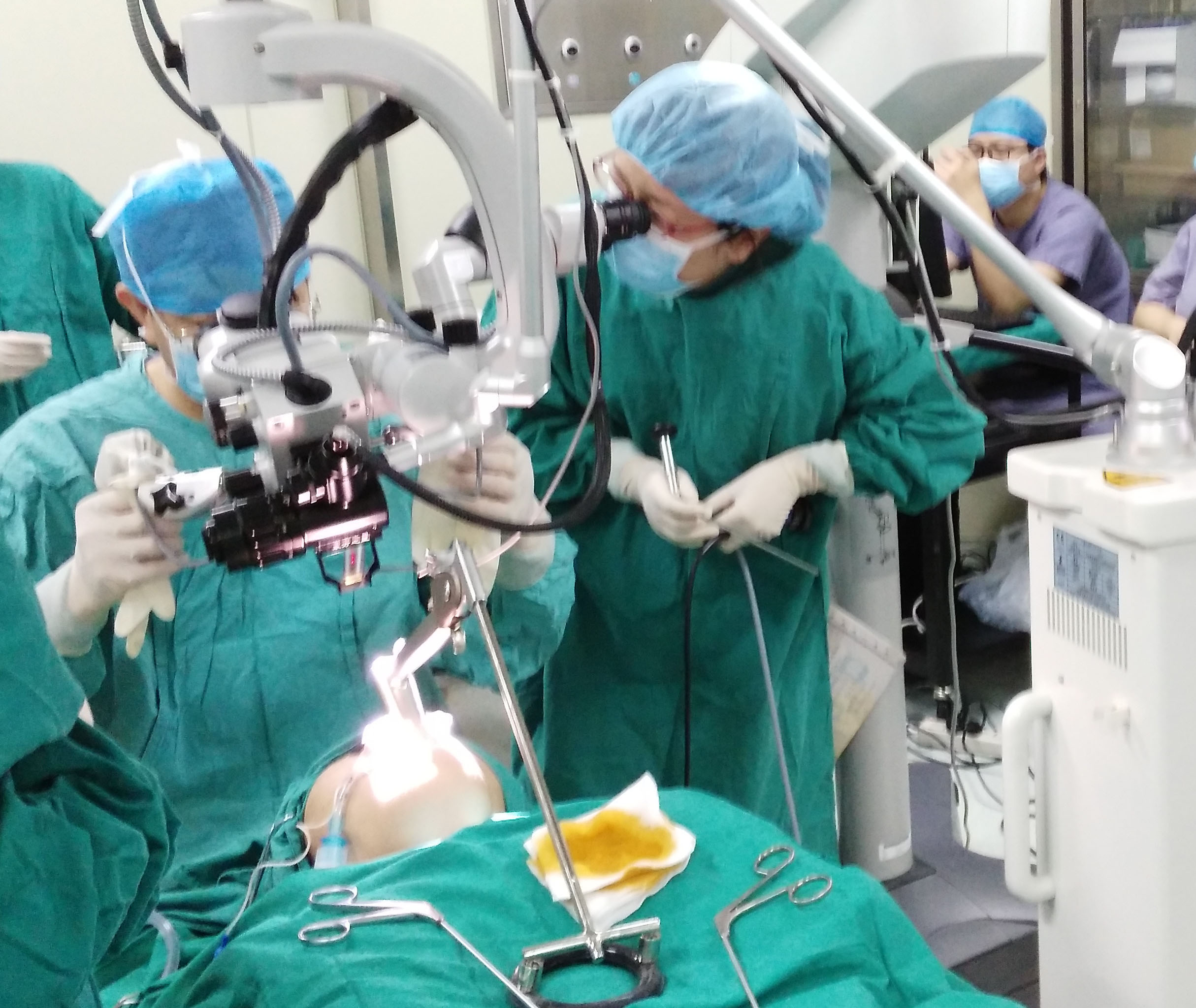

Throat surgery: tumors, polyps, vocal nodules, disease of the mouth, tonsils, snoring
Ear Surgery: tympanic membrane perforation, cut, stapes pore, resection, external auditory canal tumors, etc.
Nose: inferior turbinate hypertrophy, nasal polyps, nasal and sinus tumors, nasal hemangioma, choanal atresia.
Laser micromanipulator performance:
Focusing distance: 200mm-450mm ;
Scope of work: in the center of the microscope field adjustable radius> 20mm ;
Aiming laser, CO₂ laser, and microscope optical axis are perfectly aligned ;

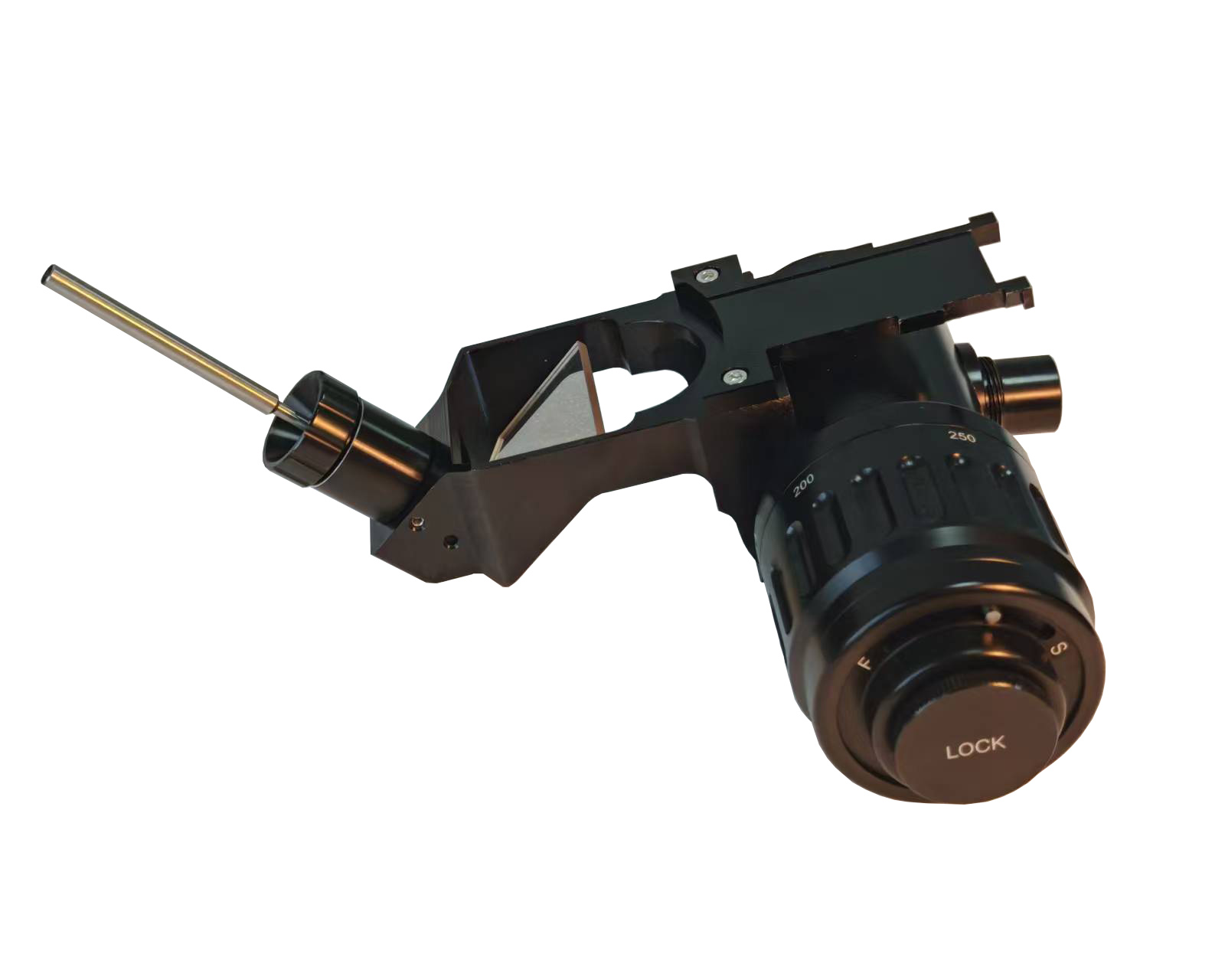

laser micromanipulator
Through Quick Connect can be used with various types of microscopes ,
Carry on fine laser surgery .
Micromanipulator
Performance of laser micromanipulator:
Focusing moment: 200mm~450mm;Working range: in the center of the microscope field of vision adjustable radius>20mm; Coincidence error between laser and
Laser micromanipulator focus positioning function, after leaving the laser focal point, laser surgery, doctors do not need to leave the microscope, you can return to the original laser focus position.
The laser microcontroller can be combined with various microscopes through quick connectors to perform fine laser surgery.

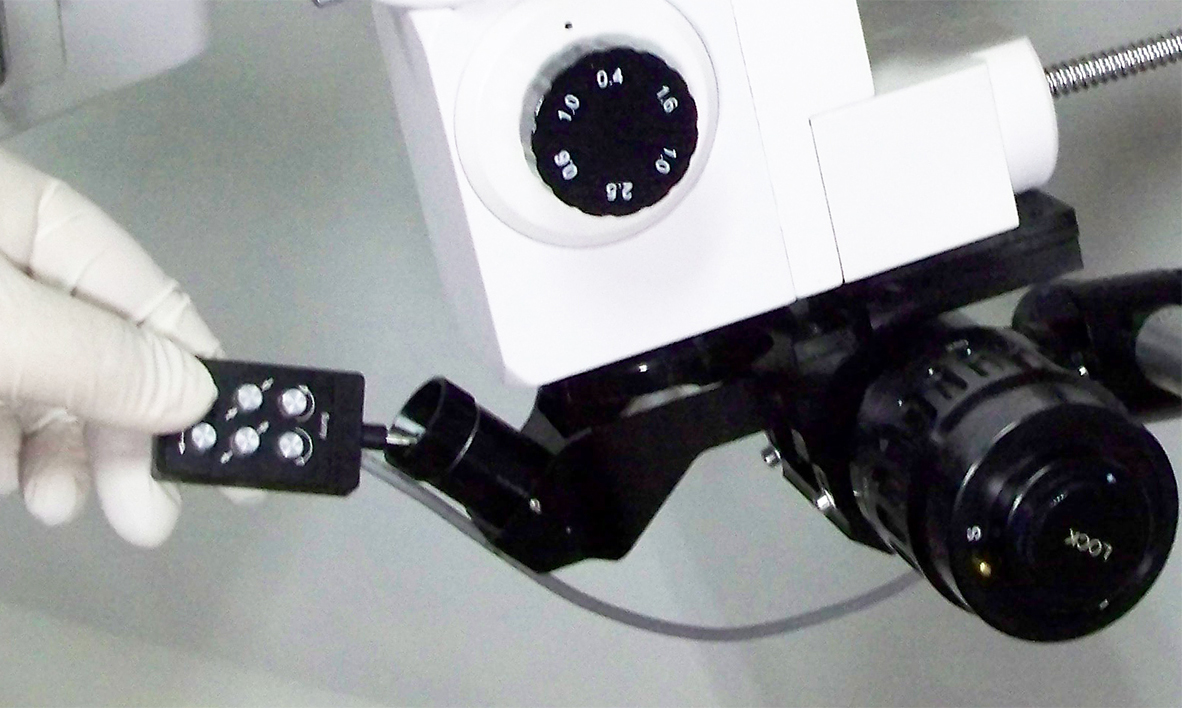

Intelligent laser micro controller handle remote controller
The company patented technology, doctors do not need to leave the eyes of the microscope, you can easily complete the 6 main operating functions, such as linear, length, rotation, etc., so that the fine laser surgery is more handy.
Micromanipulator
