CO2 laser surgical Veterinary Instruments CL40
You are here : Home > Products > Veterinary Equipment > CO2 laser surgical V...-
-

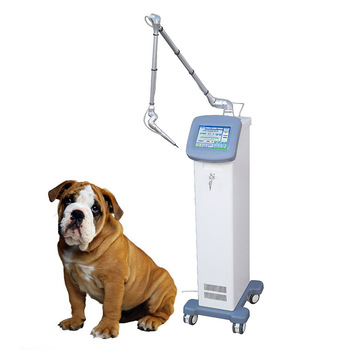

CO2 laser surgical Veterinary Instruments CL40
CO2 laser treatment using sealed-off CO2 laser, wavelength 10600nm, the output invisible infrared laser beam is characterized by small, high energy density;Laser beam output by the focusing mirror, the focal point of the target tissue can produce high temperature gasification,
can be used for cutting, burning; Direct the laser beam output, low energy density, can be the target tissue coagulation surgery;
CO2 laser output of the laser transmission through optical arm, with a variety of headpiece, for a variety of surgery.
Price Consulting
Product IntroductionWorking PrincipleTechnical ParametersVideoDownLoad
CO2 laser surgical system trait
1. Laser controlled by Microcomputer with advanced technology.
2. Complete safety system to ensure maximum safety.
3. Adjustable pulse width and interval for complete flexibility and application.
4. Adoption of selectable key units of laser power.
5. Adjustable aiming beam power to provide with optimum surgical condition.
6. Automatically test the obstacle and notice the user by displaying figure.
7.Laser beam delivery system is composed of light 7-joint spring-balanced articulated arm, which can be operated conveniently.
8.There is blow to smoke device can protect the lens
CL40 CO2 laser surgical system Laser output Model
Continuous (C W): laser control by feet switch, cont output.
Single Pulse: output single pulse laser, the adjustable scope of pulse width is (0.01S-1S).
Repeat Pulse: output repeat laser pulse, the adjustable scope of each pulse width is(0.01S-1S).
Ultra Pulse: each pulse width of the output laser is (0.1-2mS),the adjustable scope of interval of pulse is (0.01S-1S).
· Laser output mode:continuous, single, repeat, ultra pulse
· Output power preplace
· Output time preplace
· Laser work time counter
· Laser output warning switch
· Indicating beam mode :pulse、continuous、
· Brightness control
· Laser safety switch
· 9 treatment menu save
· Automatic examination break down and show
Ultra pulse Function
Using Ultra pulse can be better to reduce hot damage around the target organ .The super pulse width is extremely short(<2mS)and it hope that around the target organ can be cooled at interval of pulse. This machine has blowing function, which the heat can be blow away at interval of pulse and the pulse interval time adjustable from 0.01S to 1S(the fixed work width of pulse is <2mS).Advice that select longer interval time when the output power is major, and select short interval time when the output power is small. Made the interval time longer than hot organ cont time which may maximum reduce the water tumefaction after operation.
Veterinary laser applied range |
|||
Veterinary laser surgery provides the same benefits to pets that human patients have enjoyed for over thirty years: less pain, less bleeding, less infection, less swelling and discomfort after surgery, and the ability to resume normal activities sooner |
|||
Veterinary laser surgery can perform a wide variety of surgical procedures on cats, dogs, horses, birds, and other animals. It can be used to make unique bloodless laser incision, as well as to erase unhealthy tissue (e.g. tumors) without excessive loss of blood typical of conventional scalpel based surgery |
|||
Veterinary Low level laser therapy (LLLT) had analgesic, vasodilatory and anti-inflammatory properties. It greatly enhanced the healing of accidental /surgical wounds and of minor skin burns. It gave rapid and excellent results in lesions of the skin, superficial tissues (subcutaneous tissue and periosteum) and superficial Trigger Points (TPs). Veterinary laser (LLLT) When combined with a knowledge of the acupuncture (AP) system, LLLT was effective in treating myofascial syndromes in dogs and other animals. Veterinary laser (LLLT) use for some idiopathic lameness in dogs and people, carpal swelling in horses and arthritic swelling of human finger joints. |

CO2 laser surgical system Therapy Principle:
CO2 laser treatment using sealed-off CO2 laser, wavelength 10600nm, the output invisible infrared laser beam is characterized by small, high energy density;Laser beam output by the focusing mirror, the focal point of the target tissue can produce high temperature gasification, can be used for cutting, burning; Direct the laser beam output, low energy density, can be the target tissue coagulation surgery;
CO2 laser output of the laser transmission through optical arm, with a variety of headpiece, for a variety of surgery.
CO2 laser surgical system Applications
1. Dermatology: facial cosmetology, body freckle, nevus, tumour, wart, skin cancer, the instrument can excise anything superfluous or useless in order to make people strong and handsome and to prevent pathological changing.
2. E.N.T.: all kinds of rhinitises, nose polyps, pharyngitises, oral hemangiomas.
3. Ophthalmology: orbit tumour, eyelid, sty, double blood skin.
4. Gynecology: chronic cervicitis, valvar angiofibromata, cervical erosion, leukoplakia vulvae, excision uterus polyp , cervical carcinoma in situs, etc.
5. General surgery: haemorrhoids, anal fissure and anal fistula, phimosis, V. D. etc.
6. Others: underarm odour, corn, ulcer.
CL40 CO2 laser surgical system Specifications
Color computer screen |
8 inch touch screen color, |
Power to tissue |
>30W (C.W) |
Focal spot diameter |
<0.5mm |
operation mode |
Continuous\single\Repeat pulse\Ultra pulse |
articulated arm |
7-joint spring-balanced |
Working radius |
130cm |
Aiming beam |
Diode laser 650nm\2mW (adjustable) |
Ultra pulse |
pulse width 0.1—2mS |
pulse recurrence rate |
5-500 mS |
Tissue Exposure Modes |
CW \ Repeat pulse\Ultra pulse |
Power supply |
AC220V or 110V |
L×W×H |
420×360 ×1100 mm |
Packing L×W×H |
540×540×1230 mm |
Gross Weight |
52kg (Net weight 35kg ) |
