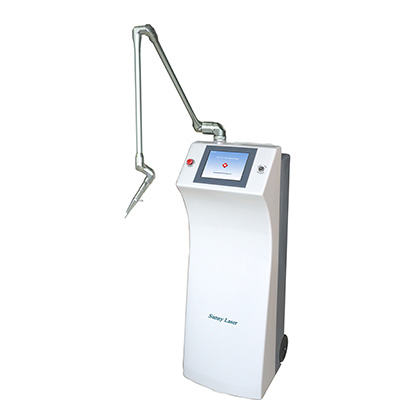

CO2 laser surgical system CL30
CO2 laser treatment using sealed-off CO2 laser, wavelength 10600nm, the output invisible infrared laser beam is characterized by small, high energy density;Laser beam output by the focusing mirror, the focal point of the target tissue can produce high temperature gasification,
can be used for cutting, burning; Direct the laser beam output, low energy density, can be the target tissue coagulation surgery;
CO2 laser output of the laser transmission through optical arm, with a variety of headpiece, for a variety of surgery.
Price Consulting
Product IntroductionWorking PrincipleTechnical ParametersVideoDownLoad
CO2 laser surgical system trait
1. Laser controlled by Microcomputer with advanced technology.
2. Complete safety system to ensure maximum safety.
3. Adjustable pulse width and interval for complete flexibility and application.
4. Adoption of selectable key units of laser power.
5. Adjustable aiming beam power to provide with optimum surgical condition.
6. Automatically test the obstacle and notice the user by displaying figure.
7.Laser beam delivery system is composed of light 7-joint spring-balanced articulated arm, which can be operated conveniently.
8.There is blow to smoke device can protect the lens.
CL30 CO2 laser surgical system Laser output Model
Ccontinuous (C W): laser control by feet switch, cont output.
Single Pulse: output single pulse laser, the adjustable scope of pulse width is (0.01S-1S).
Repeat Pulse: output repeat laser pulse, the adjustable scope of each pulse width is(0.01S-1S).
Ultra Pulse: each pulse width of the output laser is (0.1-2mS),the adjustable scope of interval of pulse is (0.01S-1S).
· Laser output mode：continuous, single, repeat, ultra pulse
· Output power preplace
· Output time preplace
· Laser work time counter
· Laser output warning switch
· Indicating beam mode ：pulse、continuous、
· Brightness control
· Laser safety switch
· 9 treatment menu save
· Automatic examination break down and show
CO2 laser surgical system Therapy Principle
CO2 laser treatment using sealed-off CO2 laser, wavelength 10600nm, the output invisible infrared laser beam is characterized by small, high energy density;Laser beam output by the focusing mirror, the focal point of the target tissue can produce high temperature gasification, can be used for cutting, burning; Direct the laser beam output, low energy density, can be the target tissue coagulation surgery;
CO2 laser output of the laser transmission through optical arm, with a variety of headpiece, for a variety of surgery.
CO2 laser surgical system Applications
1. Dermatology: facial cosmetology, body freckle, nevus, tumour, wart, skin cancer, the instrument can excise anything superfluous or useless in order to make people strong and handsome and to prevent pathological changing.
2. E.N.T.: all kinds of rhinitises, nose polyps, pharyngitises, oral hemangiomas.
3. Ophthalmology: orbit tumour, eyelid, sty, double blood skin.
4. Gynecology: chronic cervicitis, valvar angiofibromata, cervical erosion, leukoplakia vulvae, excision uterus polyp , cervical carcinoma in situs, etc.
5. General surgery: haemorrhoids, anal fissure and anal fistula, phimosis, V. D. etc.
6. Others: underarm odour, corn, ulcer.
CL30 CO2 laser surgical system Specifications
|
Color computer screen |
8 inch touch screen color, |
|
Power to tissue |
>25W （C.W） |
|
Focal spot diameter |
<0.5mm |
|
operation mode |
Continuous\single\Repeat pulse\Ultra pulse |
|
articulated arm |
7-joint spring-balanced |
|
Working radius |
110cm |
|
Aiming beam |
Diode laser 650nm\2mW (adjustable) |
|
Ultra pulse |
pulse width 0.1—２mS |
|
pulse recurrence rate |
5－500 mS |
|
Tissue Exposure Modes |
CW \ Repeat pulse\Ultra pulse |
|
Power supply |
AC220V or 110V |
|
L×W×H |
400×360 ×1000 mm |
|
Packing L×W×H |
500×480×1150 mm |
|
Gross Weight |
45kg (Net weight 33kg ) |
