CO2 laser surgical system CL15 type

You are here : Home > Products > Medical Equipment > Surgery > CO2 laser surgical s...

CO2 laser surgical system CL15 type

CO2 laser treatment using sealedoff CO2 laser, wavelength 10600nm, the output invisible infrared laser beam is characterized by small, high energy density;

Laser beam output by the focusing mirror, the focal point of the target tissue can produce high temperature gasification, can be used for cutting, burning;

Price Consulting

Product IntroductionWorking PrincipleTechnical ParametersVideoDownLoad

CL15 CO2 laser surgical system trait
1.laser controlled by microcomputer with advanced technology.
2.Complete safety system to ensure maximum safety.
3.Output power and irradiating time can be read directly from digital faceplate which provides correct data for doctor’s clinical material.
4.Adoption of selectable key units of laser power.
5.Adjustable aiming beam power to provide with optimum surgical condition.
6.Cooling system fault alarm.
7.Laser beam delivery system is composed of light 7-joint spring-balanced articulated arm,which can be operated conveniently.



CO2 laser surgical system Therapy Principle
CO2 laser treatment using sealed-off CO2 laser, wavelength 10600nm, the output invisible infrared laser beam is characterized by small, high energy density;Laser beam output by the focusing mirror, the focal point of the target tissue can produce high temperature gasification, can be used for cutting, burning; Direct the laser beam output, low energy density, can be the target tissue coagulation surgery;

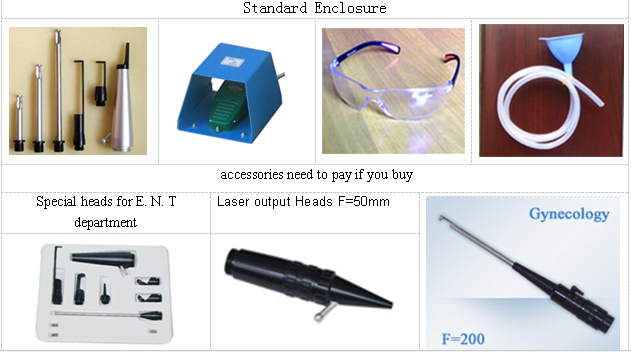

CO2 laser output of the laser transmission through optical arm, with a variety of headpiece, for a variety of surgery.
CO2 laser surgical system Applications
  1. Dermatology: facial cosmetology, body freckle, nevus, tumour, wart, skin cancer, the instrument can excise anything superfluous or useless in order to make people strong and handsome and to prevent pathological changing.
  2. E.N.T.: all kinds of rhinitises, nose polyps, pharyngitises, oral hemangiomas.
  3. Ophthalmology: orbit tumour, eyelid, sty, double blood skin.
  4. Gynecology: chronic cervicitis,  valvar angiofibromata, cervical erosion,  leukoplakia vulvae,  excision uterus polyp , cervical carcinoma in situs, etc.
 5. General surgery: haemorrhoids,  anal fissure and anal fistula, phimosis,  V. D. etc.
  6. Others: underarm odour, corn, ulcer.

CL15  CO2 laser surgical system Specifications

Power to tissue

>15W

Focal spot diameter

<0.5mm

operation mode

 Continuous \Repeat pulse\Super pulse

articulated arm

7-joint spring-balanced

Working  radius

110cm

Aiming beam:

Diode laser 650nm\2mW (adjustable)

Power supply

AC220V or 110V

L×W×H

700×200× 200 mm

Packing L×W×H

91460×360  mm

Gross weight

20kg (Net weight15Kgs )
