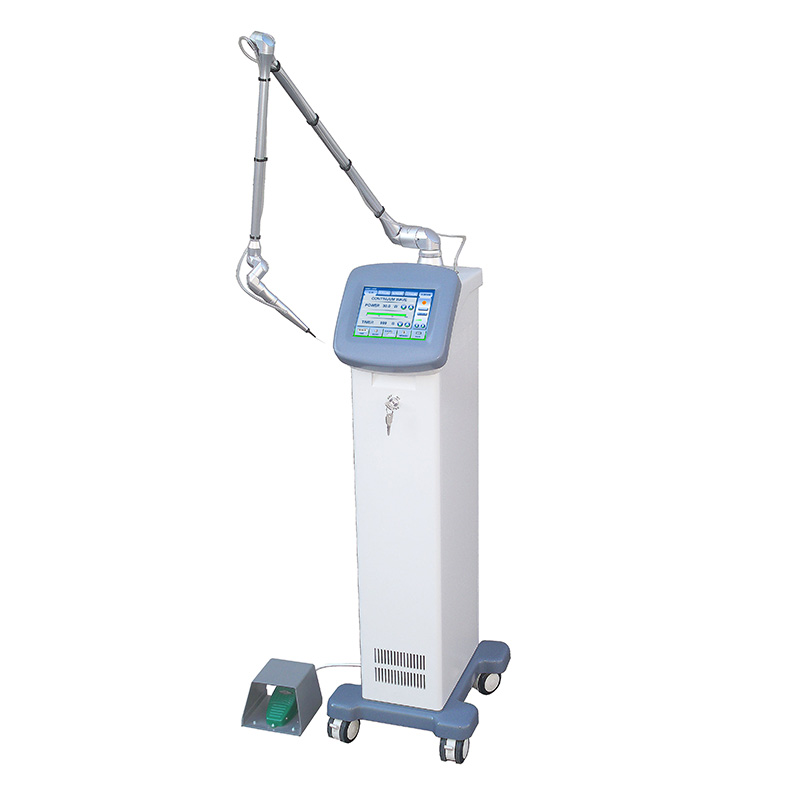

CO2 laser surgical system CL40

CO2 laser treatment using sealed-off CO2 laser, wavelength 10600nm, the output invisible infrared laser beam is characterized by small, high energy density;Laser beam output by the focusing mirror, the focal point of the target tissue can produce high temperature gasification,

can be used for cutting, burning; Direct the laser beam output, low energy density, can be the target tissue coagulation surgery;

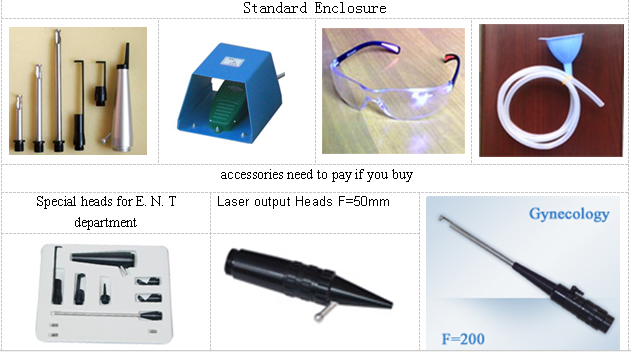

CO2 laser output of the laser transmission through optical arm, with a variety of headpiece, for a variety of surgery.

Price Consulting

Product IntroductionWorking PrincipleTechnical ParametersVideoDownLoad

CO2 laser surgical system trait
1. Laser controlled by Microcomputer with advanced technology.
2. Complete safety system to ensure maximum safety.
3. Adjustable pulse width and interval for complete flexibility and application.
4. Adoption of selectable key units of laser power.
5. Adjustable aiming beam power to provide with optimum surgical condition.
6. Automatically test the obstacle  and notice the user by displaying figure.
7.Laser beam delivery system is composed of light 7-joint spring-balanced articulated arm, which can be operated conveniently.
8.There is blow to smoke device can protect the lens
CL40 CO2 laser surgical system Laser output Model
Continuous (C W): laser control by feet switch, cont output.
Single Pulse: output single pulse laser, the adjustable scope of pulse width is (0.01S-1S).
Repeat Pulse: output repeat laser pulse, the adjustable scope of each pulse width is(0.01S-1S).
Ultra Pulse: each pulse width of the output laser is (0.1-2mS),the adjustable scope of interval of pulse is (0.01S-1S).
·   Laser output mode:continuous, single, repeat, ultra pulse
·   Output power preplace
·   Output time preplace
·   Laser work time counter
·   Laser output warning switch
·   Indicating beam mode :pulse、continuous、
·   Brightness control
·   Laser safety switch
·   9 treatment menu save
·   Automatic examination break down and show
 Ultra pulse Function
Using Ultra  pulse can be better to reduce hot damage around the target organ .The super pulse width is extremely short(<2mS)and it hope that around the target organ can be cooled at interval of pulse. This machine has blowing function, which the heat can be blow away at interval of pulse and the pulse interval time adjustable from 0.01S to 1S(the fixed work width of pulse is <2mS).Advice that select longer interval time when the output power is major, and select short interval time when the output power is small. Made the interval time longer than hot organ cont time which may maximum  reduce the water tumefaction after operation.




CO2 laser surgical system Therapy Principle:
CO2 laser treatment using sealed-off CO2 laser, wavelength 10600nm, the output invisible infrared laser beam is characterized by small, high energy density;Laser beam output by the focusing mirror, the focal point of the target tissue can produce high temperature gasification, can be used for cutting, burning; Direct the laser beam output, low energy density, can be the target tissue coagulation surgery;
CO2 laser output of the laser transmission through optical arm, with a variety of headpiece, for a variety of surgery.
CO2 laser surgical system Applications
  1. Dermatology: facial cosmetology, body freckle, nevus, tumour, wart, skin cancer, the instrument can excise anything superfluous or useless in order to make people strong and handsome and to prevent pathological changing.
  2. E.N.T.: all kinds of rhinitises, nose polyps, pharyngitises, oral hemangiomas.
  3. Ophthalmology: orbit tumour, eyelid, sty, double blood skin.
  4. Gynecology: chronic cervicitis,  valvar angiofibromata, cervical erosion,  leukoplakia vulvae,  excision uterus polyp , cervical carcinoma in situs, etc.
  5. General surgery: haemorrhoids,  anal fissure and anal fistula, phimosis,  V. D. etc.
  6. Others: underarm odour, corn, ulcer.

CL40 CO2  laser surgical system Specifications

Color computer screen

8 inch touch screen color,

Power to tissue

>30W C.W

Focal spot diameter

<0.5mm

operation mode

 Continuous\single\Repeat pulse\Ultra pulse

articulated arm

7-joint spring-balanced

Working  radius

130cm

Aiming beam

Diode laser 650nm\2mW (adjustable)

Ultra pulse

pulse width 0.1—mS

pulse recurrence rate

5500 mS

Tissue Exposure Modes

CW \ Repeat pulse\Ultra pulse

Power supply

AC220V or 110V

L×W×H

420×360 ×1100  mm

Packing L×W×H

540×540×1230 mm

Gross Weight

52kg (Net weight 35kg  )
