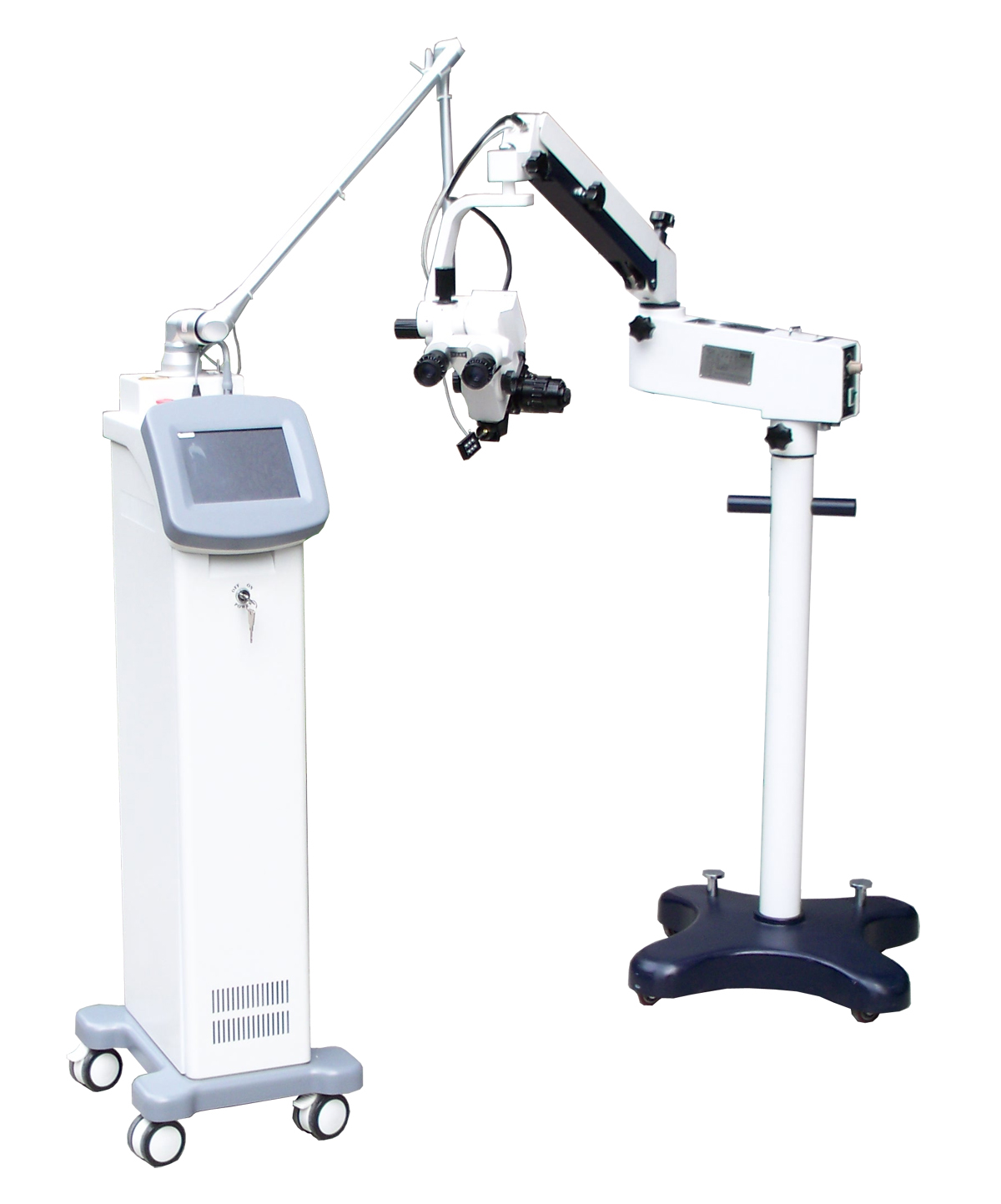

CO2 Laser for ENT Surgical equipment with micromanipulator
CL40A ENT scanning graphic laser microsurgical system to meet the fine microsurgery, CO2 laser medical equipment is connected microscope by the laser micromanipulator, as the surgery itself with preset graphics, so called “scanning graphic laser microsurgical system”.CL40A ENT scanning graphic laser microsurgical system has two operating modes: basic CO2 laser mode and scanning graphic CO2 laser mode.
Price Consulting
Product IntroductionWorking PrincipleTechnical ParametersVideoDownLoad
CL40A adaptation symptoms:
Throat surgery tumors, polyps, vocal nodules, disease of the mouth, tonsils, snoring.
Ear Surgery tympanic membrane perforation, cut, stapes pore, resection, external auditory canal tumors, etc.
Nose inferior turbinate hypertrophy, nasal polyps, nasal and sinus tumors, nasal hemangioma, choanal atresia
CL40 scanning laser microsurgery system clinic advantages:
Less damage, not needing the neck incision and trachea incision;
Less bleeding, non-contact treatment;
Good functional preservation, fast healing, little scar, less infection;
Short operation time, little pain, short hospitalization time.
Clear operation field, simple operation and safety.
CL40 scanning graphic laser microsurgery system functions:
can scan automatically according to setting graphics (Gasification, burning, cutting) ;Six kinds of scanning graphics operation interface：1 Rectangle, 2 circle, 3 curves, 4 oval or round,5 straight line, 6 ring.
The scanning graphic laser microsurgery means it will be scanned automically
by choosing the graphic when the laser outputs under the help of the smart
laser micromanipulator.
Smart laser micromanipulator:
1. Can be combined with various types of microscope through the rapid
Connector for ENT fine-surgical laser treatment;
2. The laser beam can scan with preset graphics;
3. Adjustable focal length, output fine laser beam;
4. Don’t need to leave the microscope after leaving the laser focal point,
Doctors can return to the original laser focus position.
Handle Remote Control for Smart laser micromanipulator-our patented technology
Doctor’s eyes do not need to leave microscope and can finish 6 main functions operation functions .Such as linear, length, rotation, etc; so delicate laser surgery more handy.
Smart laser micromanipulator performance:
Focusing distance: 200mm-450mm;
Scope of work: in the center of the microscope field adjustable radius> 20mm;
Indication laser and treatment laser Center coincidence error < 0.1mm;
Laser microsurgery functions:
Laser can scan automatically according to settings graphics (Gasification, burning, cutting); Six kinds of scanning graphics operation interface：1 Rectangle, 2 circle, 3 curves, 4 oval or round,5 straight line, 6 ring.
Graphics adjustment functions:
Two-dimension adjustment or Synchronization adjustment;
Graphic rotation function: 0-360° adjustable .
Through
scanning graphic laser micromanipulator, connected the CO2 laser
Medical
equipment and microscope perfectly, installing Sunny company independent
scanning software system, to perform scanning laser surgery.
Hardware for CL40
1. Type of laser: TEM 00 glass encapsulation DC excitation CO2 laser.
2. The wavelength of laser: 10600nm,TEM 00 mode.
3. Four pulse modes:
(1) Continuous pulse mode: output time of laser can be set 0~99s,also
can output for a long time.
(2) single pulse mode: pulse width: 10ms~500ms; pulse interval time:
1s~5s.
(3) Ultra short pulse mode: pulse width: 0.5ms~2ms; pulse repetition
Time:5ms~100ms, peak power more than 250W.
4. Laser output power: mini 30W, laser output power in the function of preset:
0.2~30W.
5. Indication laser wavelength: 650nm, power more than 1mW, 10 classes
Brightness adjustment, three modes.
(1) Continuous indication;
(2) Pulse indication;
(3) Aim with bright, while operating, there is no bright.
6. With 7-joint spring balance arm.
7. Cooling system: air cooling system.
8. Laser micromanipulator with transfer efficiency.
Software for CL40:
1. In the scanning laser microsurgical system, the laser can be scan automically according to presetting graphics for gasification, burning, and cutting.
2. Can save 10 kinds of preset setting menu, easily for operators to store the
Treatment of mature menus.
The system automatically detects the functions: if breaking down during operating the equipment, the screen can display cooling system, circuit, and laser, overload output etc, 9 kinds of faults.
