CO2 laser surgical Veterinary Instruments CL20
You are here : Home > Products > Veterinary Equipment > CO2 laser surgical ...-
-

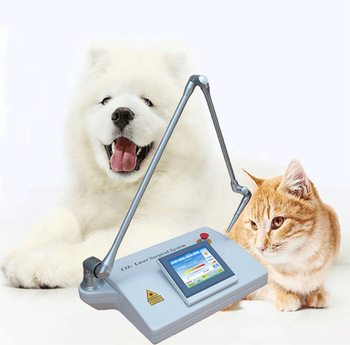

CO2 laser surgical Veterinary Instruments CL20
CO2 laser treatment using sealed-off CO2 laser, wavelength 10600nm, the output invisible infrared laser beam is characterized by small, high energy density;Laser beam output by the focusing mirror, the focal point of the target tissue can produce high temperature gasification,
be used for cutting, burning; Direct the laser beam output, low energy density, can be the target tissue coagulation surgery;
Price Consulting
Product IntroductionWorking PrincipleTechnical ParametersVideoDownLoad
1. Dermatology: facial cosmetology, body freckle, nevus, tumour, wart, skin cancer, the instrument can excise anything superfluous or useless in order to make people strong and handsome and to prevent pathological changing.
2. E.N.T.: all kinds of rhinitises, nose polyps, pharyngitises, oral hemangiomas.
3. Ophthalmology: orbit tumour, eyelid, sty, double blood skin.
4. Gynecology: chronic cervicitis, valvar angiofibromata, cervical erosion, leukoplakia vulvae, excision uterus polyp , cervical carcinoma in situs, etc.
5. General surgery: haemorrhoids, anal fissure and anal fistula, phimosis, V. D. etc.
6. Others: underarm odour, corn, ulcer.
CL20 CO2 laser surgical system Laser output Model
Ccontinuous (C/ W): laser control by feet switch, cont output.
Single Pulse: output single pulse laser, the adjustable scope of pulse width is 0.01-1S.
Repeat Pulse: output repeat laser pulse, the adjustable scope of each pulse width is(0.01S-1S).
Ultra Pulse: each pulse width of the output laser is 5mS,the adjustable scope of interval of pulse is (0.01S-1S).
· Laser output mode：continuous, single, repeat, ultra pulse
· Output power preplace
· Output time preplace
· Laser work time counter
|
Veterinary laser applied range |
|||
|
Veterinary laser surgery provides the same benefits to pets that human patients have enjoyed for over thirty years: less pain, less bleeding, less infection, less swelling and discomfort after surgery, and the ability to resume normal activities sooner |
|||
|
Veterinary laser surgery can perform a wide variety of surgical procedures on cats, dogs, horses, birds, and other animals. It can be used to make unique bloodless laser incision, as well as to erase unhealthy tissue (e.g. tumors) without excessive loss of blood typical of conventional scalpel based surgery |
|||
|
Veterinary Low level laser therapy (LLLT) had analgesic, vasodilatory and anti-inflammatory properties. It greatly enhanced the healing of accidental /surgical wounds and of minor skin burns. It gave rapid and excellent results in lesions of the skin, superficial tissues (subcutaneous tissue and periosteum) and superficial Trigger Points (TPs). Veterinary laser (LLLT) When combined with a knowledge of the acupuncture (AP) system, LLLT was effective in treating myofascial syndromes in dogs and other animals. Veterinary laser (LLLT) use for some idiopathic lameness in dogs and people, carpal swelling in horses and arthritic swelling of human finger joints. |
|||
CO2 laser surgical system Therapy Principle
CO2 laser treatment using sealed-off CO2 laser, wavelength 10600nm, the output invisible infrared laser beam is characterized by small, high energy density;Laser beam output by the focusing mirror, the focal point of the target tissue can produce high temperature gasification, can be used for cutting, burning; Direct the laser beam output, low energy density, can be the target tissue coagulation surgery;

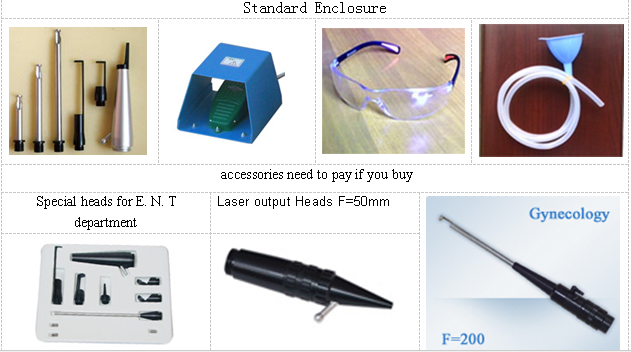

CO2 laser output of the laser transmission through optical arm, with a variety of headpiece, for a variety of surgery.
CO2 laser surgical system Applications
1. Dermatology: facial cosmetology, body freckle, nevus, tumour, wart, skin cancer, the instrument can excise anything superfluous or useless in order to make people strong and handsome and to prevent pathological changing.
2. E.N.T.: all kinds of rhinitises, nose polyps, pharyngitises, oral hemangiomas.
3. Ophthalmology: orbit tumour, eyelid, sty, double blood skin.
4. Gynecology: chronic cervicitis, valvar angiofibromata, cervical erosion, leukoplakia vulvae, excision uterus polyp , cervical carcinoma in situs, etc.
5. General surgery: haemorrhoids, anal fissure and anal fistula, phimosis, V. D. etc.
6. Others: underarm odour, corn, ulcer.
CL20 CO2 laser surgical system Specifications
|
Color computer screen |
8 inch touch screen color, |
|
Power to tissue |
20W （C.W） |
|
Focal spot diameter |
<0.5mm |
|
operation mode |
Continuous \single\Repeat pulse\Super pulse |
|
articulated arm |
7-joint spring-balanced |
|
Working radius |
110cm |
|
Aiming beam: |
Diode laser 650nm\2mW (adjustable) |
|
Power supply |
AC220V or 110V |
|
L×W×H |
630×380×180mm |
|
Packing L×W×H |
790×550× 310 mm |
|
Gross weight |
21kg (Net weight 16Kgs ) |
